Vegetable Ultrafine Pulverizer

Realistic Solutions for Food Processing

Handling High Fiber Materials

Vegetables like celery and ginger have high cellulose content. Standard impact mills often fail to break these tough fibers. The Vegetable Ultrafine Pulverizer uses a patented multi-tooth rotor. This design creates a high-frequency shearing effect. It cuts through plant fibers instead of just hitting them. This ensures the final powder is silky and dissolves perfectly in liquids.

Temperature Control for Color and Nutrients

Heat is the enemy of vegetable powder. High temperatures cause browning and loss of vitamins. Our system uses a high-volume negative pressure airflow. This air acts as a constant cooling agent inside the grinding chamber. By keeping the discharge temperature low, we preserve the natural color and nutritional value of your product.

Solving the Problem of Sugar Stickiness

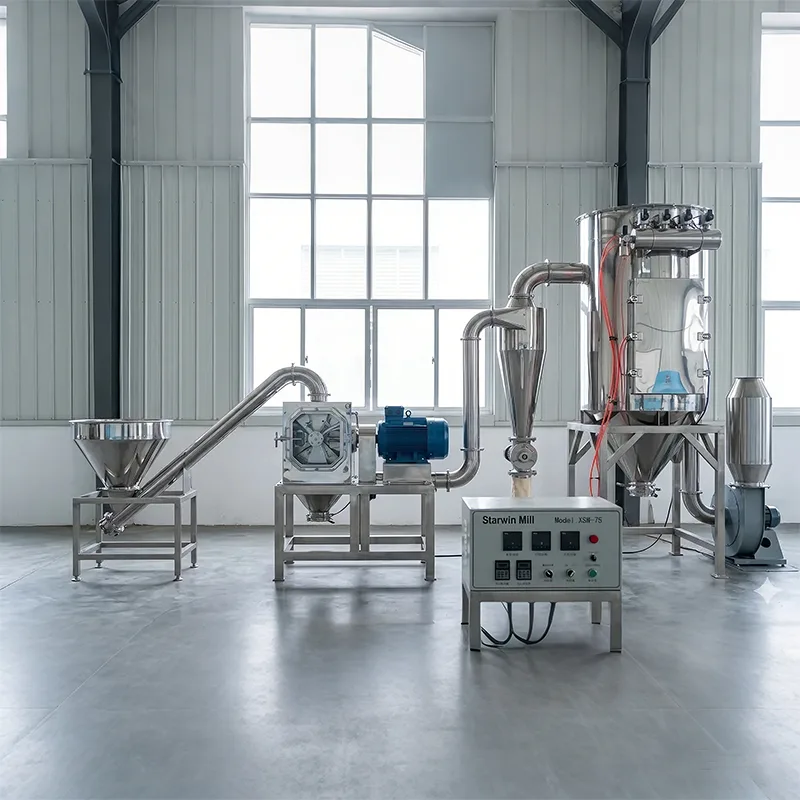

Many fruits and vegetables have high sugar content which becomes sticky when heated. The Starwin Mill system is completely screen-less. Coarse particles are separated by a vertical air classifier wheel rather than a mesh screen. This prevents clogging and allows for longer production runs. For materials with very high sugar, we can connect an air-cooling unit to the system inlet.

GMP Compliance and Cleaning

Hygiene is a critical requirement for international buyers. The entire machine is built from SUS304 or SUS316L stainless steel. The Vegetable Ultrafine Pulverizer internal surfaces are mirror-polished to a grade of Ra < 0.4μm. The grinding chamber features a large-opening door. This allows operators to clean the internal rotor and classifier quickly between different batches.

Technical Specifications (XSW Series)

Note: Actual capacity is determined by the sugar content and moisture levels of the raw material.

FAQ

Q1: What is the maximum moisture content allowed for raw materials?

A: To achieve superfine powder, the moisture content should be below 10%. Material that is too moist will stick to the classifier and reduce output.

Q2: How do I adjust the particle size for different vegetables?

A: The fineness is controlled by the speed of the air classifier motor. You can adjust the RPM through the VFD on the control panel. No mechanical parts need to be changed to reach a different mesh size.

Q3: Can the machine handle oily seeds?

A: For materials with high oil or sugar, we recommend adding a cold air source (dehumidifier or AC unit) to the air intake. This keeps the material brittle and prevents it from sticking to the internal liners.

Why Choose Qingdao Xingshengwei Machinery

Qingdao Xingshengwei Machinery Co., Ltd. is a leading Vegetable Ultrafine Pulverizer factory based in Qingdao, China. We specialize in micronization technology under the brand Starwin Mill. We provide more than just a machine. We offer complete system designs, material testing in our lab, and global technical support. Our equipment is exported to over 30 countries for food and pharmaceutical applications.
