Turmeric Ultrafine Pulverizer

The global turmeric powder market runs on color, aroma, and curcumin content — and all three are destroyed by conventional grinding that lets the material heat up. Turmeric rhizomes are fibrous, dense, and heat-sensitive: grind them hot and the golden pigment darkens, the volatile oils evaporate, and the curcumin activity drops. Our turmeric ultrafine pulverizer solves this with low-temperature impact grinding: the powder stays cool through the process, so what comes out is the color, aroma, and curcumin profile your customers expect. Many spice manufacturers rely on our turmeric ultrafine pulverizer to maintain consistent product quality year-round for export food and nutritional raw materials.

What Is a Turmeric Ultrafine Pulverizer?

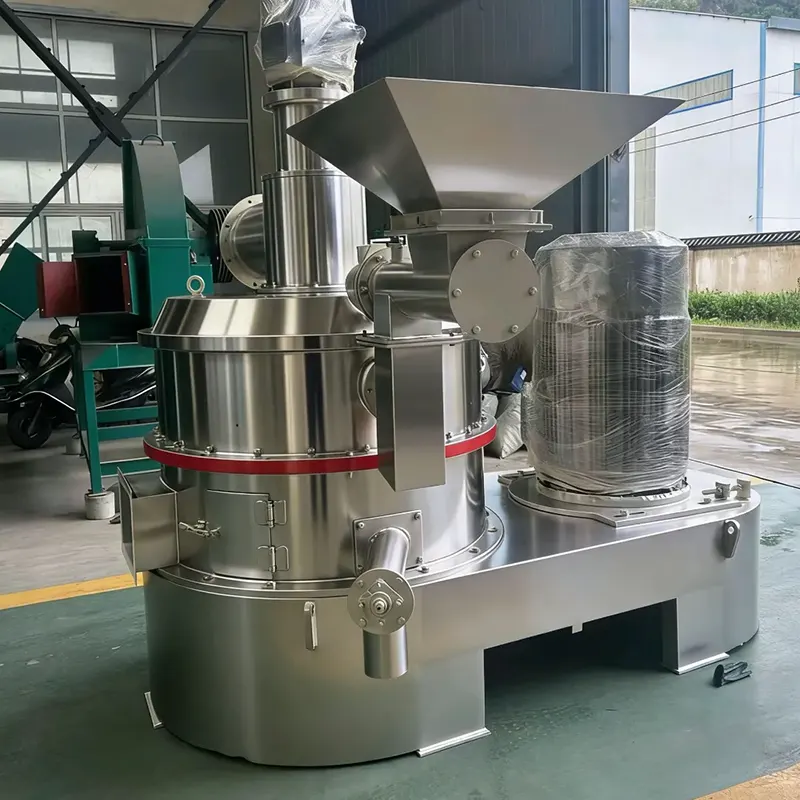

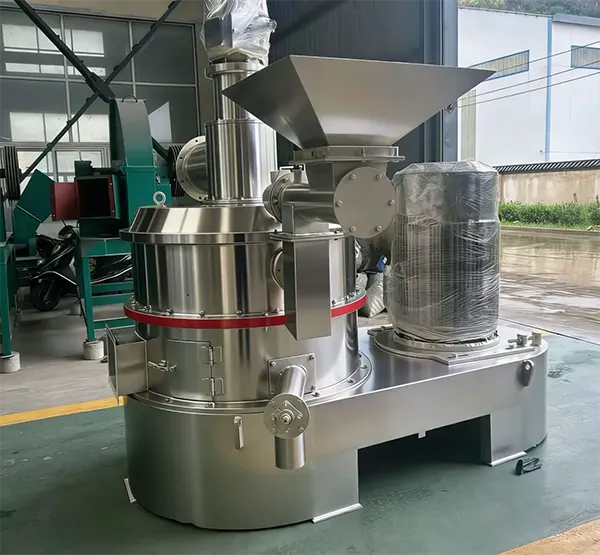

It is a stainless steel grinding system purpose-built for turmeric: a high-speed rotor shatters the dried rhizomes by impact and shear inside a sealed chamber, while an integrated air classifier continuously sorts the powder — fine particles pass through the grading wheel to the collection cyclone, coarse particles fall back for another pass. The result is uniform powder at the exact mesh you set, produced continuously with no sieves to clog and no dust escaping the system.

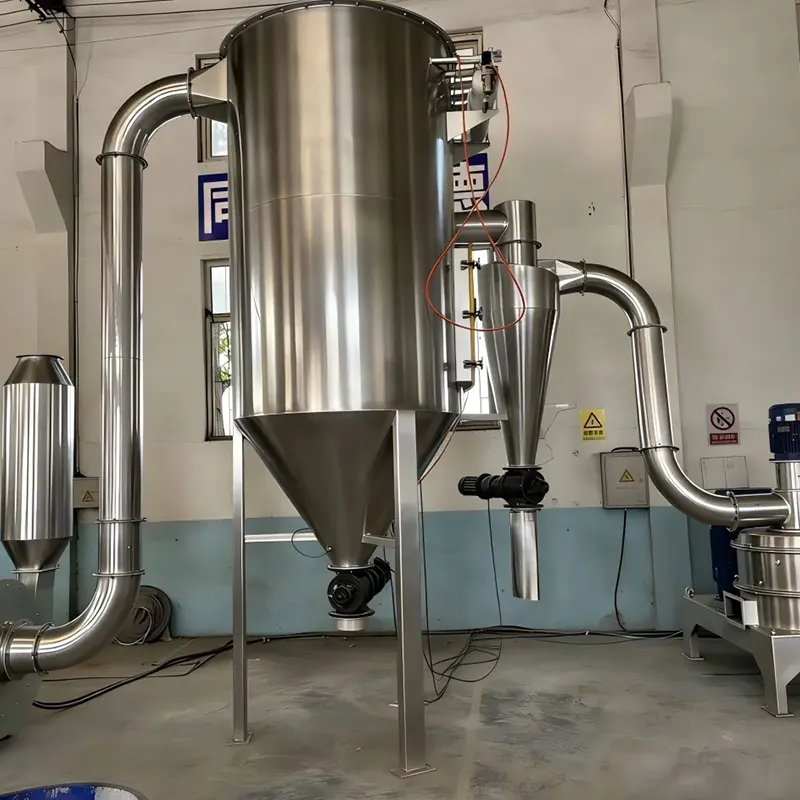

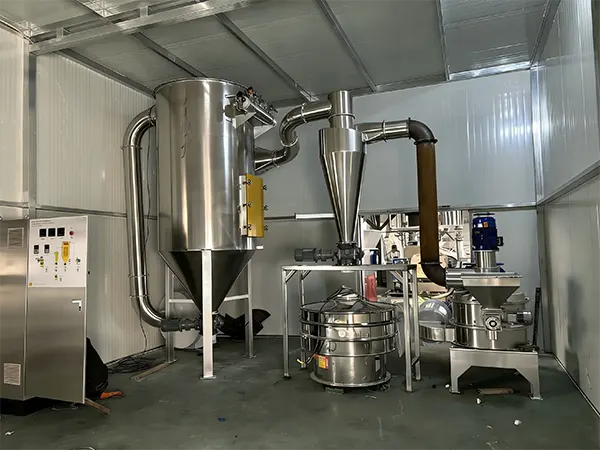

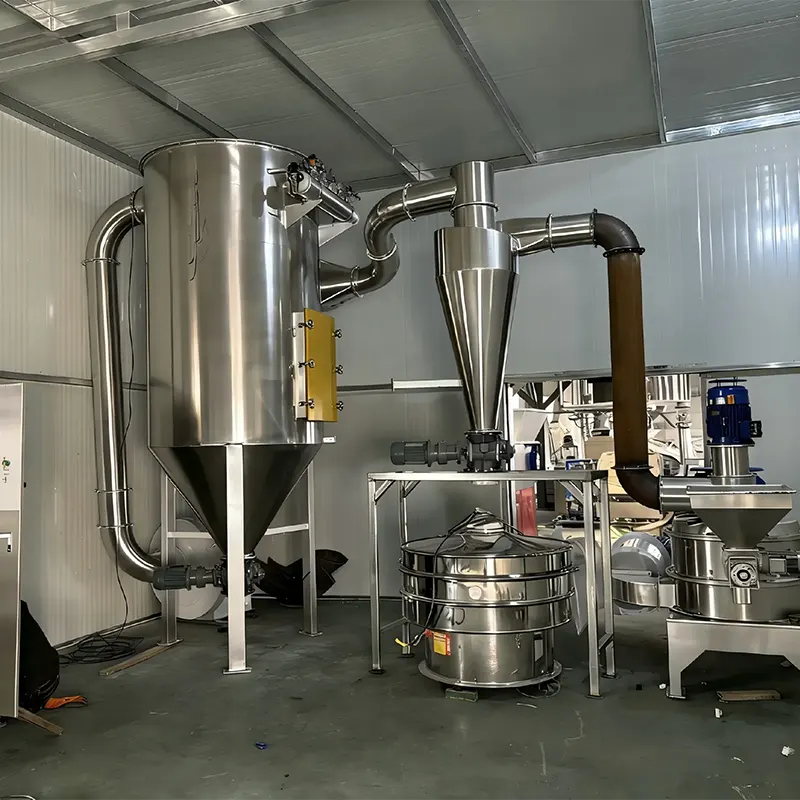

The whole line is sealed and runs under negative pressure: turmeric dust — which stains everything it touches — is collected by the pulse dust collector, not spread across your workshop. Operators, floors, and finished product stay clean.

Working Principle: Low-Temperature Grinding + Air Classification

Turmeric is fed through a quantitative feeder into the crushing chamber, where the high-speed rotor (toothed disc / hammer / blade options) breaks the material by impact, shear, and high-frequency friction. A precision grading wheel sits above the chamber: rising airflow carries particles to the classifier, powder finer than the set mesh passes through, coarser particles return by gravity and centrifugal force for regrinding.

● Low material temperature throughout — protects curcumin and volatile oils

● Variable-frequency classifier — dial in fineness from 80 to 500 mesh without changing parts

● Sealed negative-pressure circulation — zero dust leakage, no material residue

● 304 stainless steel contact parts — no metal contamination, GMP-compliant

● Instant discharge — powder exits immediately, no build-up, no batch cross-contamination

Product Specifications

Typical Applications

As a turmeric ultrafine pulverizer manufacturer and supplier, Xingshengwei Machinery supplies machines for spice processors, food ingredient plants, and supplement manufacturers — at factory-direct pricing for:

● Turmeric powder production for culinary spice blends

● Curcumin extract preprocessing — cell-wall breaking improves extraction yield

● Health supplement raw material grinding

● Dehydrated turmeric and curry powder production lines

● Natural colorant (turmeric yellow) manufacturing

● Lab-scale trial grinding before full production scale-up

Successful Customer Cases

We have delivered dozens of sets of turmeric ultrafine pulverizer to spice factories across Southeast Asia, Europe and Middle East.

1.Thailand Spice Processing Factory

The customer required 200–300 mesh turmeric powder for export seasonings. We supplied XSW-110 turmeric ultrafine pulverizer. After installation, stable hourly output reaches 350–420kg. The low-temperature grinding keeps turmeric bright golden colour, helping the client pass EU food ingredient inspection steadily.

2.Turkey Nutraceutical Raw Material Plant

The plant produces raw materials for curcumin extraction, requiring 400–500 mesh fine powder. Our XSW-135 unit meets their fineness standard, effectively improving curcumin extraction rate by over 12%. Continuous sealed operation solves their previous dust pollution problem.

3.Domestic Chinese Food Additive Manufacturer

They use our equipment to produce natural turmeric food colorant. Quick disassembly design reduces material switching cleaning time and eliminates cross-contamination risks.

Operation Notes for Turmeric Ultrafine Pulverizer

To extend machine service life and guarantee stable turmeric powder quality, please follow these operational tips:

1.Raw turmeric rhizome moisture should be controlled ≤8%. Excess moisture will cause powder agglomeration, block the classifier and reduce grinding efficiency.

2.Remove stones, metal impurities from raw turmeric before feeding; hard foreign objects will damage rotor and grinding components.

3.Do not run the machine continuously over rated load; reserve 15–20% capacity margin for long-time stable operation.

4.If switching between turmeric and other spices, fully clean all 304 stainless contact surfaces to avoid cross-contamination.

5.Regularly check air tightness of pipelines and pulse dust collector seals to prevent turmeric dust leakage.

6.Monitor powder outlet temperature; stop operation immediately if abnormal temperature rise occurs to avoid curcumin deterioration.

Selection Guide

Four questions to answer before ordering:

● Output target — hourly and daily production determine the model; we recommend 15–20% capacity redundancy

● Fineness requirement — culinary powder usually 80–200 mesh; supplement-grade and extraction feed prefer 300–500 mesh

● Moisture & fiber — turmeric with higher moisture may need pre-drying; we advise on the moisture limit (≤8% recommended)

● Workshop layout — feeding method (manual, screw conveyor, vacuum suction) and discharge packaging per your floor plan

Send us a 1–2 kg turmeric sample: our engineers run a trial grind, report the achievable fineness, capacity, and powder temperature, and recommend the model. Sample testing is free for serious inquiries.

FAQ

1.Q: What fineness can this turmeric pulverizer achieve?

A: 80–500 mesh adjustable via the variable-frequency classifier. For culinary turmeric powder, 120–200 mesh is typical; for curcumin extraction preprocessing, 300–500 mesh improves extraction efficiency significantly.

2.Q: Will the powder lose its yellow color?

A: No — that is the point of low-temperature grinding. Conventional grinders overheat turmeric and darken the pigment; our design keeps material temperature low, preserving the bright golden color and curcumin activity.

3.Q: Is the machine easy to clean between different materials?

A: Yes. All contact parts are 304 stainless with smooth mirror surfaces, and the crushing chamber opens for full access. Clean-down between batches takes about 20–30 minutes, preventing cross-contamination.

4.Q: What is the delivery time and customization cycle?

A: Standard models ship in 15–25 days. Customized solutions (capacity, voltage, feeding system) typically take 7–15 working days for design plus production time. Full performance testing is done before shipment.

5.Q: What after-sales support do you provide?

A: Installation manuals, operation videos, 24-hour multilingual remote guidance, lifelong maintenance support, and on-site service coordination. All equipment comes with warranty. For turmeric ultrafine pulverizer prices, bulk orders, or a quotation, contact our export team today.
