Bagasse Ultrafine Pulverizer

Product Description

The  Bagasse Ultrafine Pulverizer includes main grinding host, air classifier, cyclone collector, pulse dust remover and PLC control cabinet. It can crush dried bagasse into uniform ultrafine powder continuously in a fully enclosed system.

Finished bagasse powder can be widely used in biomass fuel, animal feed, paper making, biodegradable materials, organic fertilizer, filler for composite materials and plant extraction industries. It helps sugar factories realize waste recycling, improve added value of bagasse residue and reduce solid waste disposal cost.

Get A Quote Now

Working Principle

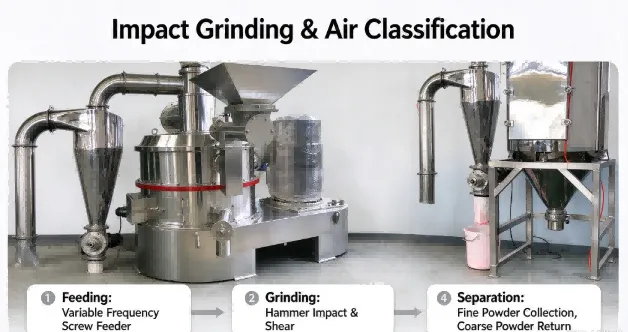

This Bagasse Ultrafine Pulverizer produced by xsw is a screenless air-classified ultrafine mill. Pre-crushed sugarcane bagasse enters the grinding chamber via a variable-frequency screw feeder. The high-speed rotating rotor fitted with wear-resistant cutting hammers impacts and shears bagasse fibers to break fiber bundles and cell walls. Fine powder that meets the target fineness passes through the classification wheel and is transported by airflow to the cyclone separator for collection. Oversized coarse powder is automatically returned to the grinding chamber for re-pulverization, which avoids over-grinding and reduces power consumption.

The whole grinding and collecting process runs inside sealed pipelines. The pulse dust collector captures micro dust to realize dust-free production in the workshop. Optional air cooling or water cooling structure controls the temperature during grinding and prevents thermal degradation of fiber components. Material contact parts can be made of carbon steel or SS304 stainless steel to satisfy different industrial requirements.

Besides sugarcane bagasse, the equipment is also compatible with rice straw, wheat straw, wood sawdust, palm fiber, coffee grounds and other biomass fiber materials. It can work as a standalone unit or be integrated into a fully automatic biomass powder production line.

Get A Quote Now

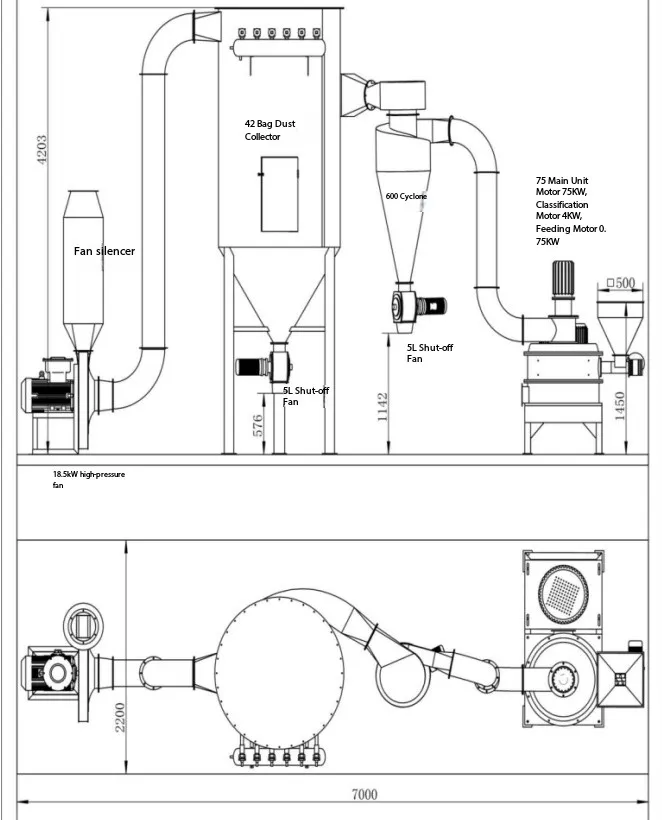

Product Specification

Get A Quote Now

Product Advantages

1. Professional for high-fiber bagasse Wear-resistant alloy hammers and adjustable grinding gap design, specially optimized for long and tough bagasse fiber, prevent fiber winding and blockage, stable continuous grinding.

2. No screen, airflow closed classification No screen structure avoids screen damage and fiber clogging. Fineness adjustable by changing classifier speed, particle size distribution narrow and uniform.

3. Dust-free & environment friendly Full closed pipeline + cyclone separator + pulse dust collector, dust emission ≤10mg/m³, meet environmental protection standards, improve workshop working condition.

4. Low temperature grinding option Standard air cooling; water cooling optional. Effectively control grinding heat, protect fiber property of bagasse powder.

5. Easy operation & maintenance PLC automatic control, real-time monitoring of current, temperature and vibration. Quick disassembly design for cavity cleaning; wearing parts are replaceable at low cost.

6. Wide material compatibility Suitable for bagasse and multiple biomass fibers. Flexible to switch production between different raw materials for multi-product factories.

7. High safety protection Equipped with overload protection, emergency stop button, safety interlock and vibration alarm to prevent motor burnout and equipment damage.

Why Choose Us

1. Professional biomass grinding R&D & manufacturing We have rich experience in bagasse, straw and wood fiber ultrafine milling. XSW do material test for your raw bagasse before quotation to confirm actual capacity and fineness effect.

2. Customized solution service We can customize machine material, power, feeding system, cooling mode and whole production line layout according to your bagasse moisture, required mesh, hourly output and site condition. Support turnkey project including pre-crusher, dryer, conveyor and packaging machine.

3. Strict quality control & certification All machines pass dynamic balance test, factory running test. Available CE, ISO9001 certification. Supply material test report, COA and inspection document.

4. Complete after-sales global service 12 months warranty for whole machine (excluding wearing parts). We provide English operation manual, video guidance for installation, commissioning and daily maintenance. Overseas engineer onsite service available on request.

5. Competitive factory direct price We are original manufacturer without middle trader markup. We optimize machine structure to reduce power consumption and long-term operation cost for customers.

6. Sample testing support You can send us your bagasse samples, we do grinding test and send powder sample + test video for your evaluation before order confirmation.

Get A Quote Now

FAQ

Q1: What moisture of bagasse is suitable for this ultrafine pulverizer?

A: Recommended moisture ≤12%. Too wet bagasse will cause fiber adhesion, block feeding and reduce output. If your bagasse has high moisture, we can match rotary dryer in the production line.

Q2: What is the finest mesh we can get for bagasse powder?

A: Normally 50-800 mesh adjustable. For special requirement, we can optimize classifier structure to reach 600 mesh bagasse ultrafine powder. Finer powder will reduce hourly capacity.

Q3: Is pre-crushing required before feeding into this ultrafine mill?

A: Yes. Original long bagasse needs primary shredder to cut into ≤10–12mm small chips. We can supply matched pre-shredder together.

Q4: Can this machine work 12 hours continuously?

A: Yes. Main rotor passes strict dynamic balance, heavy-duty bearing assembly. Under normal feeding and regular maintenance, it supports long-time continuous industrial production.

Q5: What wearing parts need regular replacement?

A: Hammer blades, lining plate and sealing rings are consumables. We provide spare parts list and spare parts supply. Replacement operation is simple.

Q6: Can I test my bagasse material on your machine?

A: Yes. Welcome to send bagasse samples. We will test grinding, record video and send finished powder sample for your check.

Q7: What documents will you provide for customs clearance?

A: Commercial invoice, packing list, bill of lading, CE certificate, factory inspection certificate, COA, user manual.
