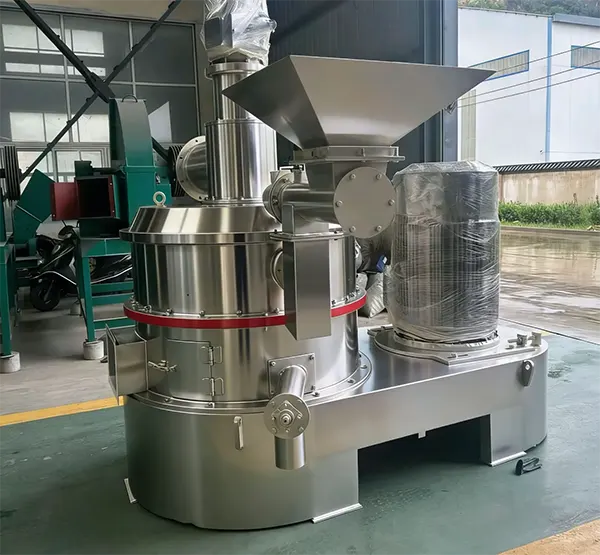

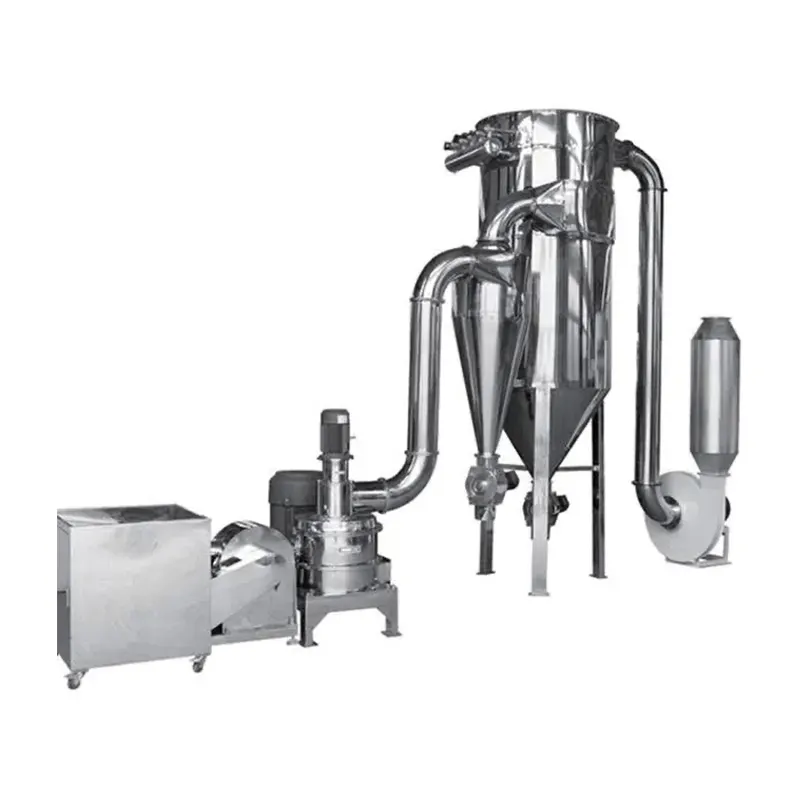

Chili Ultrafine Pulverizer

The chili ultrafine pulverizer produced by XSW grinds cool, preserving the red pigment (capsanthin), the pungency (capsaicin), and the aroma that define quality chili powder. It is the machine behind the bright, consistent powder that top spice brands ship.

Working Principle

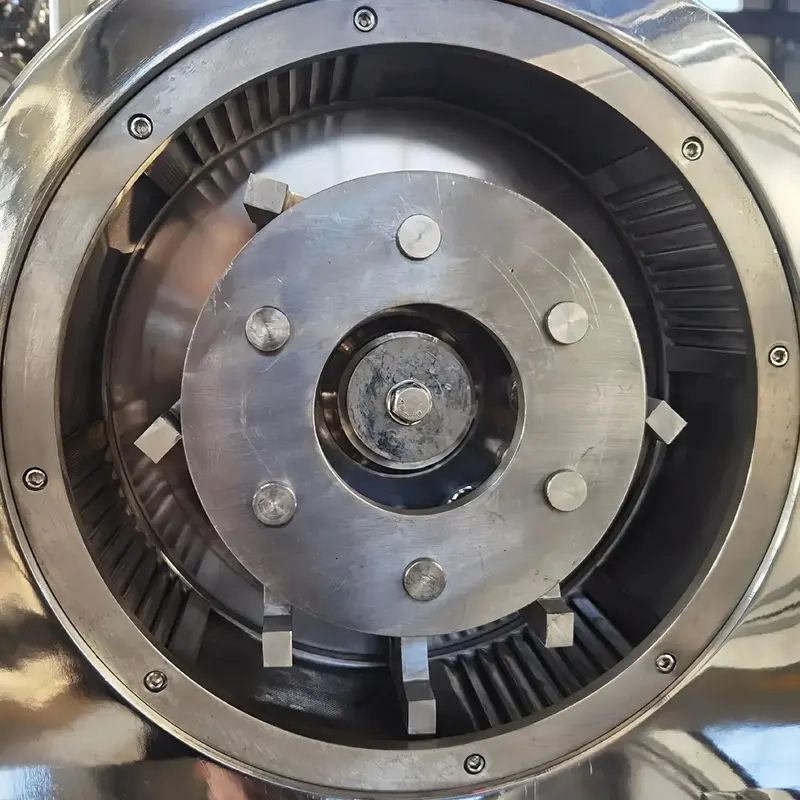

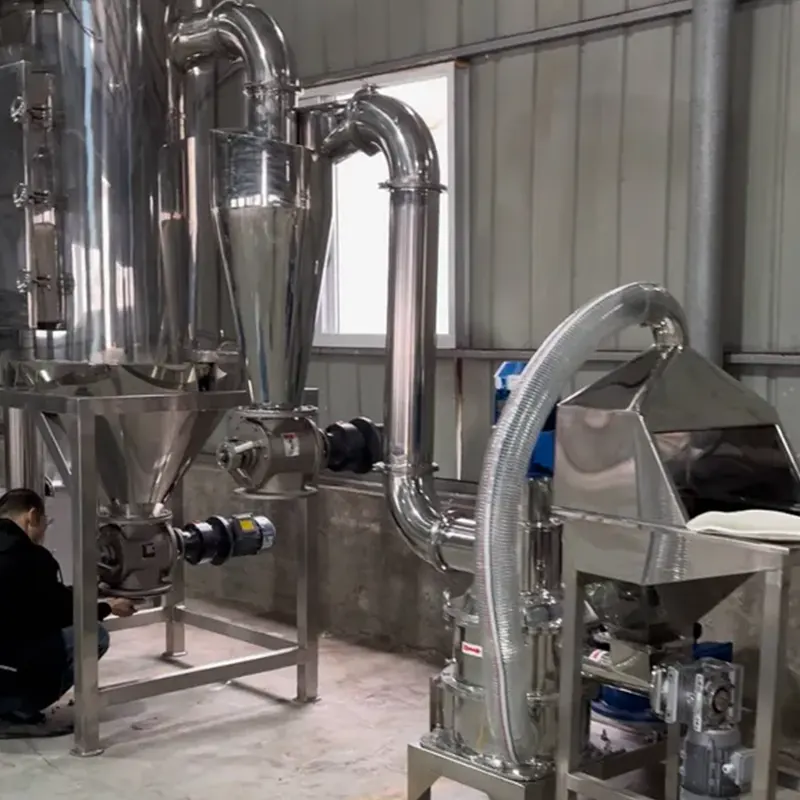

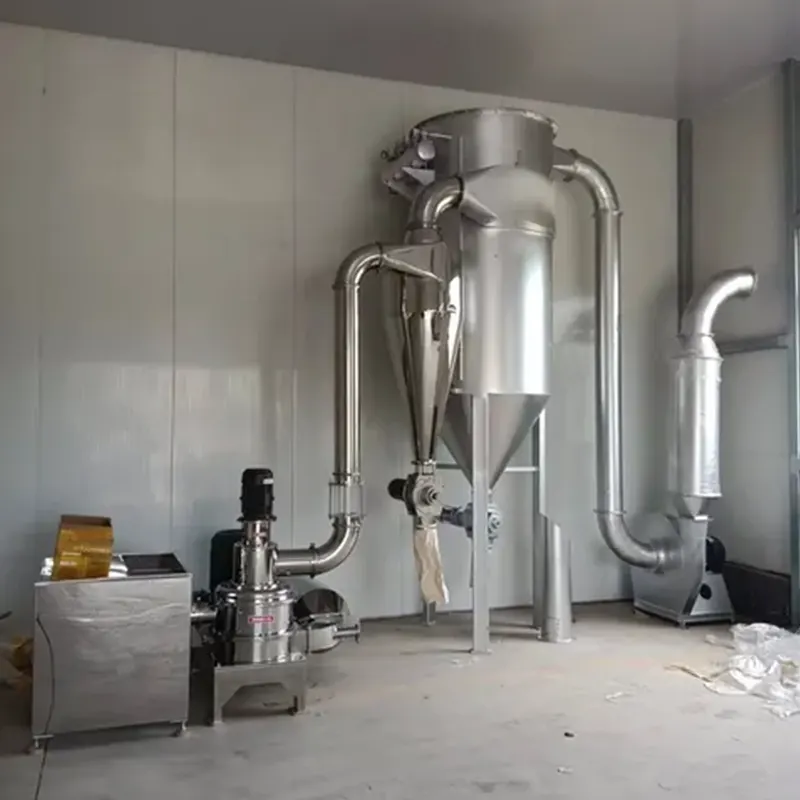

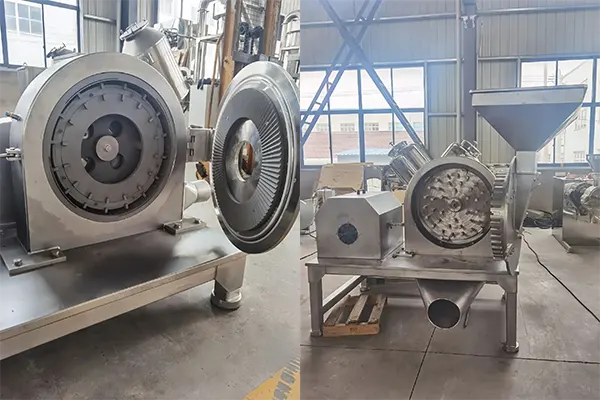

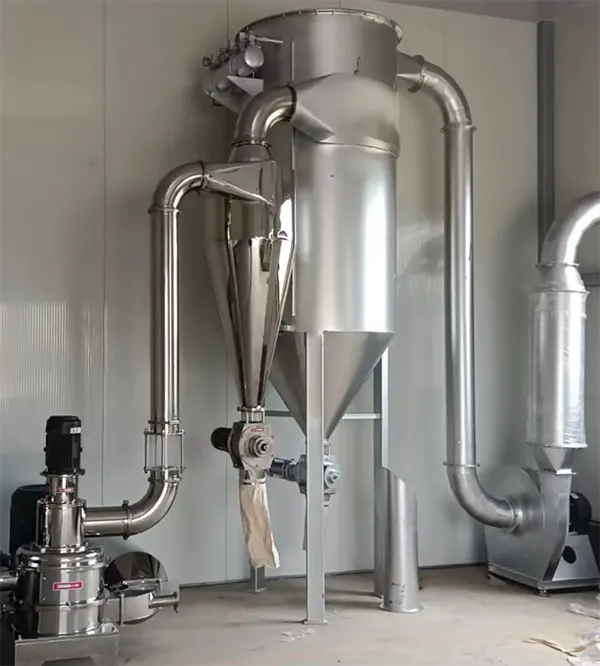

Dried chili is fed into the sealed crushing chamber where a high-speed rotor (hammer or toothed-disc configuration) breaks the pods by impact, shear, and friction. A precision air classifier above the chamber continuously sorts particles: powder finer than the set mesh is carried by airflow to the cyclone collector; coarse particles fall back for regrinding. The closed loop runs under negative pressure — no dust, no chili powder in the air, no staining of the workshop.

Because grinding happens at low material temperature, the capsanthin pigments and capsaicin stay intact. A hotpot-base manufacturer using our unit achieved stable 180-mesh chili powder with a 23% improvement in natural flavor retention and a bright, vibrant finished color.

Features & Benefits

Color That Stays Red

The chili ultrafine pulverizer uses low-temperature grinding to prevent capsanthin from degrading due to high temperatures. Therefore, the ground chili powder always retains its bright red color.

Heat & Pungency Preserved

When chili peppers are pulverized using XSW's chili ultrafine pulverizer, capsaicin and volatile aroma components are preserved during the low-temperature grinding process. The resulting chili powder satisfies customers' expectations for a spicy flavor.

Uniform 60–500 Mesh

The chili ultrafine pulverizer uses variable frequency air classification technology to ensure uniform particle size throughout the product—no excessively fine powder, no coarse powder streaks. Powder quality and mixing effect are consistent..

Sealed & Dust-Free

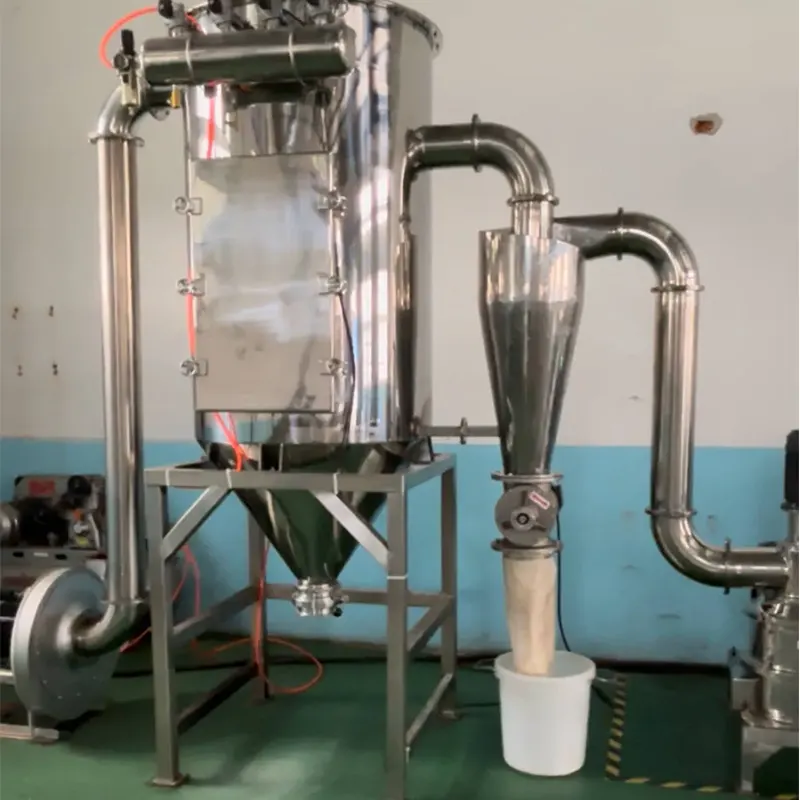

Chili powder is highly corrosive—it irritates the eyes and stains surfaces. XSW's chili ultrafine pulverizer uses a sealed negative pressure system with pulse-jet dust removal technology to completely seal off chili powder.

High Fiber Tolerance

Chili skins and seeds are fibrous. Our impact grinding handles the fiber that jams conventional screen mills, with the classifier managing particle separation instead of a clog-prone sieve.

Product Specifications

Typical Applications

As a chili ultrafine pulverizer manufacturer and supplier, XSW ultrafine pulverizer supplies machines at factory-direct pricing for:

● Chili powder for hotpot bases, chili oil, and seasoning blends

● Paprika and chili colorant production

● Instant noodle seasoning and snack flavoring powder

● Foodservice bulk chili powder processing

● Private label spice packaging lines

Usage & Installation Notes

● Pre-dry chili to ≤8% moisture for optimal throughput and color retention

● Feed evenly and gradually — overfeeding blocks the crushing chamber

● Set classifier frequency per required mesh; verify with a sieve test on first run

● Install on a level, vibration-isolated base with adequate clearance for cleaning access

● Ensure workshop ventilation; operators should wear dust masks and goggles during cleaning

● Do not run more than 12 hours continuously without inspection

● Stop feeding immediately if abnormal vibration or noise occurs

Maintenance Guide

● Daily: empty the dust collector, check for powder build-up in discharge paths

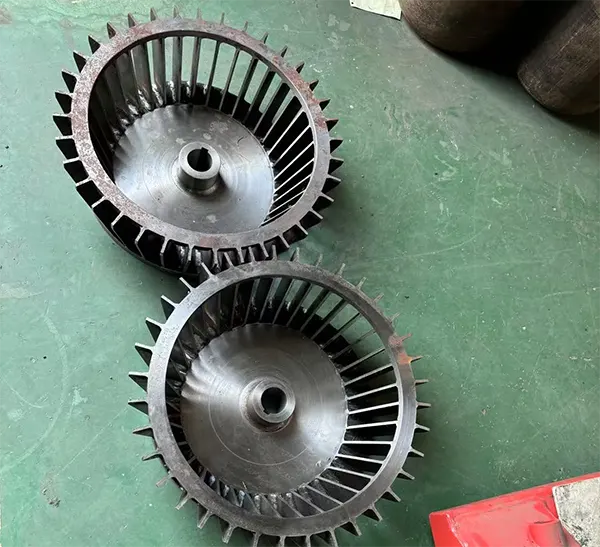

● Weekly: inspect rotor and blades for wear; check classifier wheel clearance

● Monthly: full clean-down of crushing chamber and piping (20–30 min), verify seal integrity

● Quarterly: check V-belts, bearings, and motor mounts; tighten as needed

● Wear parts (hammers/blades): replace when output drops or fineness drifts; we stock spare parts and ship worldwide

● After each material change: run a short empty cycle, then clean contact surfaces to prevent cross-contamination

Every XSW ultrafine pulverizer chili pulverizer ships with a maintenance manual and spare parts list. Our 24-hour support line covers remote diagnostics — most issues are resolved with video guidance the same day.

FAQ

Q: Why does my current chili powder turn brown?

A: Heat. Conventional grinders raise material temperature, degrading the red capsanthin pigments. Our chili ultrafine pulverizer low-temperature grinding keeps the powder cool — the red stays red. That is the core difference.

Q: What mesh sizes can I produce?

A: 60–500 mesh, adjustable with the variable-frequency classifier. Common: 80–120 mesh for table chili powder, 180–300 mesh for hotpot base and seasoning applications.

Q: Can it handle chili with seeds?

A: Yes — seeds and skins both grind through the impact chamber. If you want seed-free powder, a pre-screening step before grinding can remove them.

Q: How much chili can it process per hour?

A: From 100 kg/h (XSW35-18.5) up to 1,500 kg/h (XSW95-110). Tell us your daily target and we will size the model, typically with 15–20% headroom.

Q: Do you provide installation and training?

A: Yes — installation manuals and operation videos with every machine, plus 24-hour multilingual remote guidance. On-site commissioning can be arranged through dispatched engineers. For chili ultrafine pulverizer prices, bulk orders, or a quotation, contact our export team.
