Powder Metallurgy Ultrafine Pulverizer

The powder metallurgy ultrafine pulverizer is a specialized equipment developed specifically for the powder metallurgy industry. It is mainly used for ultrafine processing of metal powders, alloy powders, and various non-metallic powder raw materials, and can perfectly adapt to the raw material processing requirements of the entire powder metallurgy production process. Compared with ordinary crushing equipment, the most prominent feature of the powder metallurgy ultrafine pulverizer is its adherence to the strict standards of the powder metallurgy industry, which can accurately control the particle size of the powder, ensure uniform particle distribution, and completely avoid secondary pollution, ensuring the high purity of the finished powder and fully meeting the core requirements of subsequent forming, sintering, and other processes.

添加视频：https://www.youtube.com/shorts/sTG8DondX-c

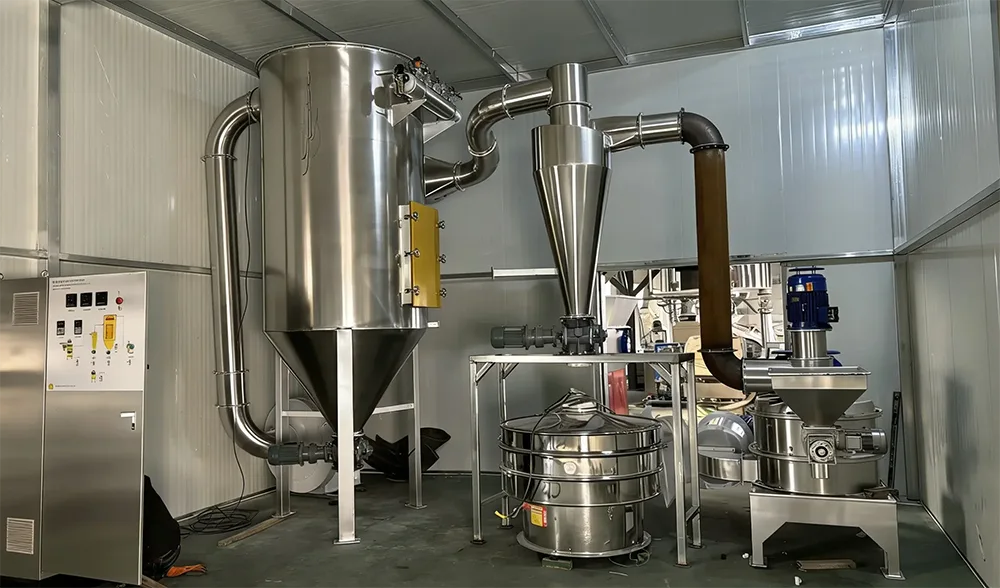

From the perspective of structural details, the powder metallurgy ultrafine pulverizer adopts an integrated design, integrating the four functions of feeding, crushing, grading, and collection together without the need for additional auxiliary equipment. This can significantly save workshop space, simplify production processes, and improve processing efficiency. All core components of the equipment are made of high hardness wear-resistant alloy materials. The grinding chamber lining plate, grinding hammer, grinding roller and other easily worn parts have undergone special quenching treatment, which can effectively resist the friction loss of hard metal powder, significantly extend the service life of the equipment, and reduce maintenance costs in the later stage. The feeding system is equipped with a variable frequency speed control device, which can flexibly adjust the feeding speed according to the hardness of the material and the actual crushing needs, avoiding problems such as blockage of the crushing chamber and uneven feeding, and ensuring the continuous and stable operation of the equipment.

In addition, the powder metallurgy ultrafine pulverizer adopts a fully enclosed negative pressure structure, combined with imported sealing rings, which completely solves the old problems of air leakage and powder leakage in traditional crushing equipment. It can not only protect the production environment and avoid dust pollution that endangers the health of operators, but also prevent external impurities from mixing into the powder, ensuring that the purity of the finished powder meets the standard. The device operation panel is designed to be very user-friendly, with functions such as one click start stop, parameter adjustment, and fault alarm clearly visible. Without the need for professional technical training, ordinary operators can quickly get started, greatly reducing labor costs.

Manufacturing Principle

The core working principle of the powder metallurgy ultrafine pulverizer is to gradually crush coarse powder raw materials into ultrafine powder that meets the requirements of powder metallurgy production through the synergistic effect of high-speed impact, shear, and friction. The entire processing process is carried out in a closed negative pressure environment, which is both environmentally friendly and ensures processing accuracy.

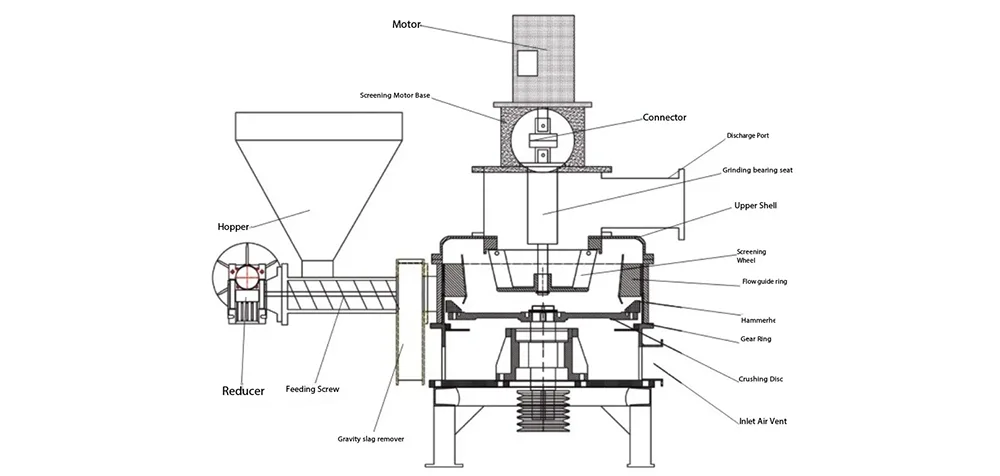

The specific processing flow is simple: first, feed the coarse powder raw material with a particle size of no more than 10mm into the feeding hopper, and then transport it to the crushing chamber at a constant speed through a variable frequency feeder; The grinding disc in the grinding chamber rotates at high speed, driving the grinding hammer and grinding roller to run synchronously at high speed, generating strong centrifugal force, and throwing the coarse powder raw material into the inner wall of the grinding chamber; Under the action of centrifugal force, raw materials undergo severe collisions, shearing, and friction with wear-resistant lining plates, crushing hammers, and crushing rollers, completing preliminary crushing; After initial crushing, the material will be brought into the classification chamber by the negative pressure airflow generated by the induced draft fan. The classification wheel in the classification chamber rotates at high speed to accurately classify according to the particle size. The ultra-fine powder that meets the requirements (particle size can be adjusted as needed) will be brought into the collector by the airflow to complete the collection; Coarse powder that does not meet the particle size requirements will be intercepted by the grading wheel and sent back to the crushing chamber for secondary crushing until it reaches the specified particle size standard, ensuring the uniformity of the finished powder.

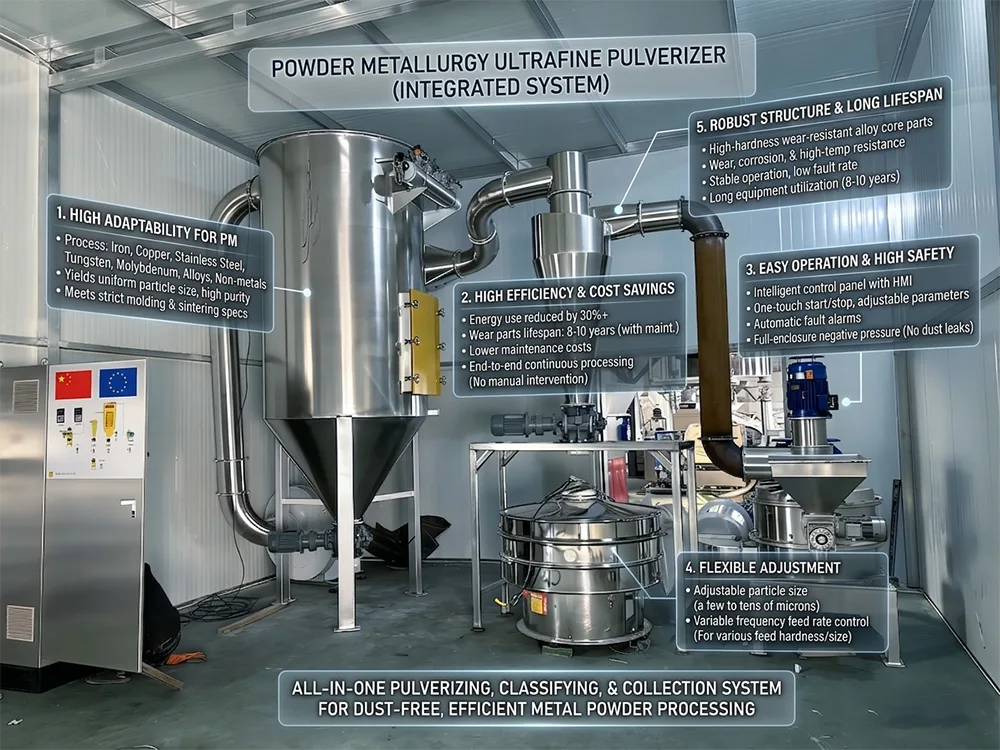

Product advantages

1. Strong adaptability, suitable for the actual needs of powder metallurgy: The powder metallurgy ultrafine pulverizer is specially designed for the powder metallurgy industry and can handle various metal and alloy powders such as iron, copper, stainless steel, tungsten, molybdenum, etc. It can also adapt to non-metallic powder raw materials. The crushed powder has uniform particle size, high purity, and no impurities mixed in, fully meeting the strict requirements of subsequent processes such as powder metallurgy forming and sintering, solving the pain points of insufficient crushing accuracy and easy powder contamination of ordinary crushers.

2. Efficient and energy-saving, reducing processing costs: The equipment adopts an integrated design, without the need for additional auxiliary equipment, and energy consumption is reduced by more than 30% compared to traditional crushing equipment; At the same time, wear-resistant components have a long service life, reduce replacement frequency, and lower maintenance costs in the later stage; The integrated process of feeding, crushing, grading, and collection does not require manual intervention, which can greatly improve processing efficiency and is suitable for large-scale continuous production.

3. Simple operation and high safety: Humanized intelligent control panel, one click start stop, adjustable parameters, automatic fault alarm, operators can get started without professional training; Fully enclosed negative pressure structure, preventing dust leakage, protecting both the production environment and the health of operators; The equipment operates with minimal vibration and low noise, meeting the environmental standards for workshop production.

4. Flexible adjustment and wide applicability: The crushing particle size can be flexibly adjusted according to actual production needs (from a few micrometers to tens of micrometers), adapting to the raw material requirements of different powder metallurgy products; The feeding speed can be freely adjusted through a frequency converter, which can adapt to raw materials of different hardness and particle size, covering the raw material processing needs of the entire powder metallurgy industry.

5. Stable structure and long service life: The core components are made of high hardness wear-resistant alloy material, which has been specially treated to be wear-resistant, corrosion-resistant, and high-temperature resistant; The overall structure of the equipment is compact, stable in operation, and has a low failure rate. Under normal maintenance, the service life can reach 8-10 years, which can greatly improve the utilization rate of the equipment.

Product specifications

Product Application

The powder metallurgy ultrafine pulverizer is mainly used for the ultrafine processing of raw materials in the entire powder metallurgy industry, and can adapt to the crushing treatment of various metal, alloy, and non-metal powders. It is widely used in multiple fields such as automotive, machinery, electronics, aerospace, medical, and tool manufacturing. The specific application scenarios are as follows:

1. Automotive industry: Used for crushing raw materials of automotive powder metallurgy parts, such as metal powder processing of gears, synchronizers, connecting rods, oil containing bearings and other parts, to ensure uniform powder particle size, improve part forming accuracy and mechanical properties.

2. Machinery and tool manufacturing: Used for raw material crushing of hard alloy cutting tools, stainless steel gears, structural components and other products, especially for ultrafine processing of hard alloy powder, which can improve the hardness and wear resistance of cutting tools and extend their service life.

3. Electronics and 3C industry: Used for powder raw material processing of mobile phone card holders, lens components, micro precision parts and other products. These products require high precision and purity of powder particle size. Powder metallurgy ultrafine pulsars can accurately meet this demand, ensuring the precision and stability of electronic parts.

4. Aerospace industry: Used for raw material processing of aerospace powder metallurgy products such as high-temperature components and precision structural parts. It can handle refractory metal powders such as tungsten and molybdenum, and the crushed powder has stable properties, meeting the high-strength and high-temperature resistance requirements of aerospace products.

5. Medical industry: Used for raw material processing of medical powder metallurgy products such as orthopedic implants and surgical instruments. These products require the powder to be free of impurities and have uniform particle size. The closed processing design of the powder metallurgy ultrafine pulverizer ensures the purity of the powder and meets the hygiene standards of the medical industry.

In addition, this equipment can also be used for powder processing in fields such as new energy and chemical engineering, and can adapt to the ultrafine grinding needs of different industries, with a wide range of applications.

FAQ

Q1: What types of materials can the powder metallurgy ultrafine pulverizer handle?

A: It mainly deals with various metal powders (iron, copper, stainless steel, etc.), alloy powders (tungsten copper, hard alloy, etc.) and non-metallic powders commonly used in the powder metallurgy industry. The feed particle size does not exceed 10mm, and the crushing parameters can be flexibly adjusted according to the material hardness.

Q2: Can the particle size of the powder crushed by the equipment be adjusted? What is the adjustment range?

A: It can be flexibly adjusted, with a discharge particle size range of 5-50 μ m. According to actual production needs, the powder particle size can be precisely controlled by adjusting the speed of the grading wheel to meet the raw material requirements of different powder metallurgy products.

Q3: How to solve the problem of dust leakage during equipment operation?

A: The powder metallurgy ultrafine pulverizer adopts a fully enclosed negative pressure structure, matched with imported sealing rings, and is processed in a closed environment throughout the process. The negative pressure generated by the induced draft fan can collect all the dust, completely eliminating dust leakage, which is both environmentally friendly and safe.

Q4: Is the maintenance frequency of the equipment high? What maintenance items should be paid attention to in daily life?

A: The equipment maintenance frequency is not high, and the core wear-resistant components have a long service life. Under normal circumstances, the wear of the wear-resistant lining plate and crushing hammer should be checked once a month, and comprehensive lubrication and maintenance should be carried out once a quarter; Just keep the equipment clean in daily life, avoid material residue, and ensure even feeding.

Q5: What is the production efficiency of the equipment? Is it suitable for mass production?

A: The equipment adopts an integrated design, with synchronous feeding, crushing, grading, and collection, resulting in high production efficiency. The production capacity of different models of equipment ranges from 50-500kg/h, which can fully meet the needs of large-scale continuous production, greatly improve production efficiency, and reduce labor costs.

Q6: Do operators need professional training to operate equipment?

A: No need, the device is equipped with a user-friendly intelligent control panel, with simple and easy to understand functions such as one click start stop, parameter adjustment, and fault alarm. Operators can get started with simple guidance without professional technical training.
